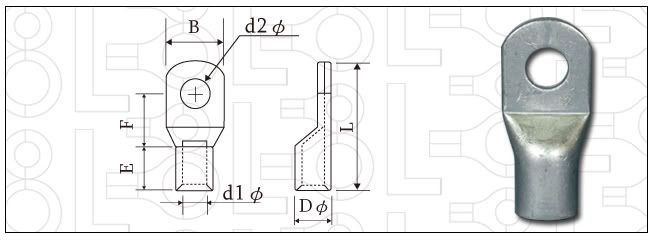

銅管端子

ITEM NO.

d2 Ø

d1Ø

D Ø

B

E

F

L

DINmm2

2.5-4

4.3

2.4

3.9

8

7

7

18

2.5

2.5-5

5.3

2.5-6

6.4

10

19

4-5

5.3

2.8

4.5

10

7

8

20

4

4-6

6.4

6-5

5.3

3.8

5.5

10

9

9

23

6

6-6

6.4

6-8

8.4

12.6

25

10-6

6.4

4.5

6.2

10

9

10

25

10

10-8

8.4

12.6

26

16-5

5.3

5.4

7.1

10

12

11

30

16

16-6

6.4

16-8

8.4

12.6

16-10

10.5

25-6

6.4

6.8

8.8

12.6

12

11

30

25

25-8

8.4

25-10

10.5

15

31

35-6

6.4

8.2

10.6

15

13

14

35

35

35-8

8.4

35-10

10.5

35-12

13

18.6

12

36.8

50-8

8.4

9.5

12.4

18

16

17

43

50

50-10

10.5

50-12

13

19

70-8

8.4

11.2

14.7

21.0

18

20

50

70

70-10

10.5

70-12

13

95-10

10.5

13.5

17.4

25.5

20

22

55

95

95-12

13

120-10

10.5

15

19.4

28

22

24

60

120

120-12

13

120-14

15

120-16

17

150-10

10.5

16.5

21.2

30.5

26

27

69

150

150-12

13

150-14

15

150-16

17

185-10

10.5

18.5

23.5

34

32

29

78

185

185-12

13

185-14

15

185-16

17

240-12

13

21

26.5

38.5

38

34

92

240

240-14

15

240-16

17

240-20

21

300-12

13

23.5

30

43.5

42

37

101

300

300-16

17

300-20

21

400-12

13

28.5

36.5

53

44

44

114

400

400-16

17

400-20

21

500-12

13

30

39

56

48

48

124

500

500-16

17

500-20

21
