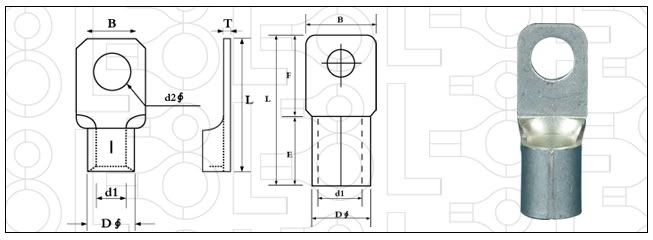

方形端子




ITEM NO.

d2

B

T

L

D

d1

E

F

50-8

8.4

16

1.6

40

13.5

10.5

14

26

50-10

10.5

16

1.6

40

13.5

10.5

14

26

50-12

13

20

1.6

42

15

12

15

27

60-8

8.4

17

1.8

44

15

11

17

27

60-10

10.5

80-8

8.4

18

2

47

18

14

19

28

80-10

10.5

20

49

30

80-12

13

100-8

8.4

22

2.3

50

21

16

21

29

100-10

10.5

100-12

13

125-10

10.5

22

2.5

55

22

17

22

33

125-12

13

125-16

17

150-10

10.5

24

2.8

62

25

19

26

36

150-12

13

27

150-16

17

180-10

10.5

28.5

3

66

27

21

28/

38

180-12

13

180-16

17

200-10

10.5

33

3.5

70

31

25

30

40

200-12

13

200-16

17

325-12

13

37

3.8

80

35

27

34

46

325-16

17
