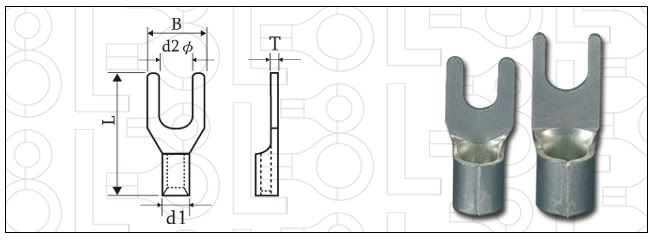

Y型端子



ITEM NO.

d2∮

B

T

L

d1

DINmm2

1.25-S3Y

3.2

5.5

0.7

14.5

1.9

1.5

1.25-3Y

3.5

6

14.5

1.25-S4Y

4.3

6

16

1.25-4Y

4.3

7

16

1.25-5Y

5.3

6.2

16

2-S3Y

3.5

5.5

0.7

15

2.4

2.5

2-3Y

3.5

6

15

2-S4Y

4.3

6

16

2-4Y

4.3

7

16

2-5Y

5.3

8

16

2-6Y

6.5

10

16

3.5-4Y

4.3

8

0.8

17

3.2

4

3.5-5Y

5.3

8.5

3.5-6Y

6.5

11

5.5-4Y

4.3

8

0.9

18.5

5.4

6

5.5-5Y

5.3

9.5

19.5

5.5-6Y

6.5

11

21

8-5Y

5.3

9.5

1

23.5

4.8

10

8-6Y

6.5

12

24

14-6Y

6.5

12.5

1.2

28

6

16

22-8Y

8.5

13.5

1.5

34

8

25
