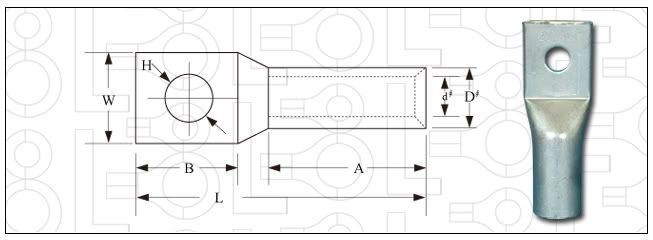

高壓單孔端子




ITEM NO.

H

W

A

B

L

D

d

Wire Awg

14-6

6.4

9.8

28.5

16

50

8.8

5.8

6AWG

14-8

8.4

9.8

28.5

16

50

8.8

5.8

6AWG

22-8

8.4

16

28.5

18

52

11.3

7.7

4AWG

22-10

10.5

16

28.5

18

52

11.3

7.7

4AWG

38-10

10.5

18.3

30.4

22

61

12

9

2AWG

38-12

13

60-10

10.5

20.5

26

22

70

14

11

1/0AWG

60-12

13

80-10

10.5

23.2

38

26

75

16

13

3/0AWG

80-12

13

100-10

13

26

40

26

75

18

14

3-0AWG

100-12

13

4/0AWG

125-12

13

28

40

32

85

20

16

250MCM

150-12

13

31

46

32

94

22

17

300MCM

180-12

13

33

46

32

98

23

18.2

350MCM

200-12

13

36

48

36

104

26

20

400MCM

250-12

13

40

48

40

114

28

22

500MCM

325-12

13

45

50

50

118

32

25

650MCM

400-12

13

48

60

54

130

35

28

800MCM

500-12

13

56

60

60

150

40

31

1000MCM
